Why Square Double-Wall Stainless Steel Lunch Boxes Are a Pain to Make (Part 8)

Por qué las loncheras cuadradas de acero inoxidable de doble pared son un dolor de cabeza para fabricar (Parte 8)

Stories in the cup, warmth in life—hello everyone, this is "Dong Dong's Cup Talk". Over the past year or so, I've received numerous inquiries from clients wanting to produce square double-layer stainless steel insulated lunch boxes. https://www.zhanyict.com/en/ProductsDetail-VB-10536.htmlToday, I'd like to share the issues I've encountered during these consultations, as well as the real production challenges, so that everyone can gain a comprehensive understanding of manufacturing this product through my sharing.

If you find my insights helpful for developing similar products, don't forget to give me a like. If you'd like to learn more, please follow the "Dongdong Talks Cups" account—whenever new content is updated, the system will notify you right away. https://www.zhanyict.com/en/ProductsDetail-VB-10536.htmlSince there's a lot of material, and some parts need to be read multiple times for full understanding, I'll be sharing this in multiple installments.

Why are round vacuum-insulated mugs ubiquitous on the market, while square double-layer insulated lunch boxes are almost nowhere to be seen? https://www.zhanyict.com/en/ProductsDetail-VB-10536.htmlSome friends have asked multiple brands for a trustworthy square insulated lunch box, only to find that none of them produce it.

Do many people wonder why, when round insulated containers are available, no brand produces a square one made of stainless steel? https://www.zhanyict.com/en/ProductsDetail-VB-10536.htmlIs it really that difficult to manufacture? In fact, those in the industry know perfectly well that the production logic, equipment compatibility, and mechanical structures of the two are completely different.

Today, I'm going to candidly discuss the production difficulties of square double-layer stainless steel insulated lunch boxes. https://www.zhanyict.com/en/ProductsDetail-VB-10536.htmlAt the same time, I'll clearly explain the only two self-insulation solutions currently used in the industry—vacuum extraction and filling the interlayer with insulating materials—and provide a realistic, actionable feasibility assessment specifically for an extra-large inverted-trapezoid square lunch box (45×35×25cm).

5. Production Difficulties and Insulation Lifespan of the Filled Insulation Material Process

Compared to the vacuum process, the solution of filling the interlayer with insulating materials carries no risk of negative-pressure deformation and has a much lower production threshold, https://www.zhanyict.com/en/ProductsDetail-VB-10536.htmlbut it still presents many challenges, and the insulation lifespan is limited.

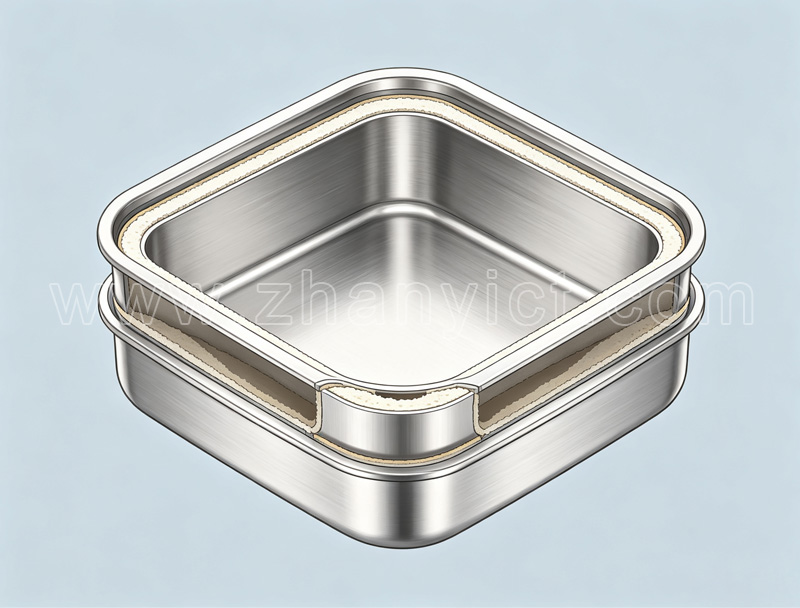

The biggest production issue is inadequate filling in the irregular shape. This lunch box has an inverted-trapezoid shape with curved edges and corners throughout, with different dimensions at the top and bottom. Prefabricated insulation batting simply cannot fit precisely, and voids are very likely to form at the edges and corners, creating insulation blind spots. Even with on-site foaming, https://www.zhanyict.com/en/ProductsDetail-VB-10536.htmlthe narrow 5mm interlayer restricts material flow, making it difficult to fill the bottom and dead corners evenly, resulting in poor insulation uniformity. At the same time, the ultra-long weld seams must be completely sealed; otherwise, the internal filling material will absorb moisture, accumulate dust, and breed bacteria, failing to meet food-grade standards.

Actual insulation lifespan (under daily household hot-cold cycling conditions)

- High-end aerogel filling: Longest service life—3 to 5 years under normal use. After 5 years, it gradually powders and develops gaps, with insulation performance dropping by more than half.

- Food-grade fiberglass wool filling: Stable for 2 to 3 years, after which it settles and delaminates, https://www.zhanyict.com/en/ProductsDetail-VB-10536.htmlcausing a significant decline in insulation capacity.

- Food-grade polyurethane foam: Poorest temperature resistance—after 1.5 to 2 years of repeated hot-cold use, it cracks and shrinks, completely losing its insulation function.

Compared to the decade-long service life of the vacuum process, the durability gap of the filling solution is very pronounced.

6. Feasibility of the Filling Material Solution for the Same Extra-Large Lunch Box

Conclusion first: Prototyping and small-batch production are viable, with no risk of deformation or scrap—this is the only feasible production solution for this product.

Although it can be done, the drawbacks are clear: poor insulation uniformity, thermal blind spots, short service life, https://www.zhanyict.com/en/ProductsDetail-VB-10536.htmland extremely heavy finished weight. It is only suitable for fixed-location use and completely unsuitable for everyday portable use.

To summarize:

1. There are only two self-insulation solutions for double-layer stainless steel—vacuum and interlayer filling. Vacuum insulation is stable and long-lasting, but places extremely high demands on structure and equipment. The filling process has a lower threshold and no deformation risk, but provides uneven insulation and a shorter lifespan.

2. Square vacuum-insulated lunch boxes are a well-recognized industry challenge. Ordinary lunch box manufacturers lack the necessary equipment and technology, while insulated mug manufacturers have equipment and mechanical structures that are incompatible—yield rates remain persistently low.

3. For this 45×35×25cm extra-large inverted-trapezoid square box, the vacuum process is completely unworkable for mass production due to the fatal physical deformation issue. The filling process can be put into production, https://www.zhanyict.com/en/ProductsDetail-VB-10536.htmlbut the finished product is bulky, has insulation shortcomings, and offers limited service life.

4. The reason round insulated containers are so widely available is that their structural stress distribution is uniform and they are compatible with all mass-production equipment. Insulated containers with irregular square shapes are difficult to produce due to the combined shortcomings in process, mechanics, https://www.zhanyict.com/en/ProductsDetail-VB-10536.htmlequipment, and surface quality control.
