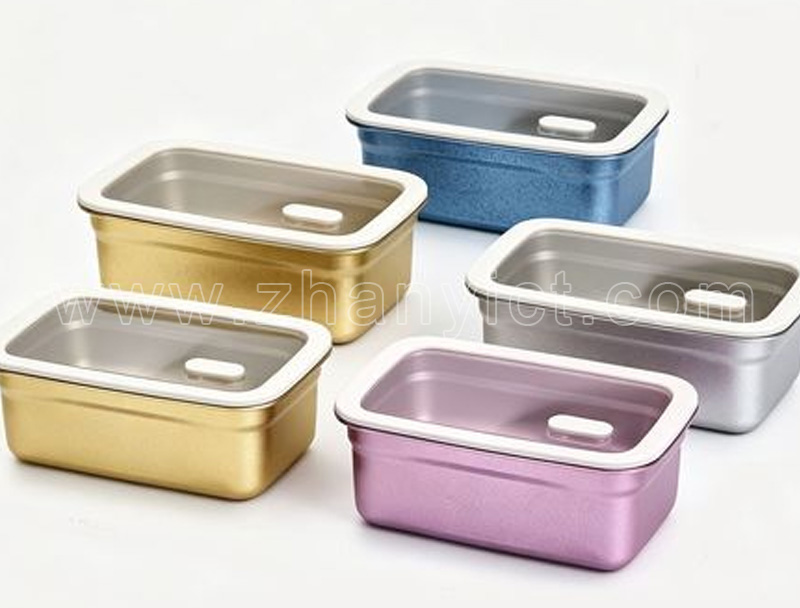

Why Square Double-Wall Stainless Steel Lunch Boxes Are a Pain to Make (Part 7)
Por qué las loncheras cuadradas de acero inoxidable de doble pared son un dolor de cabeza para fabricar (Parte 7)
Stories in the cup, warmth in life—hello everyone, this is "Dong Dong's Cup Talk". Over the past year or so, I've received numerous inquiries from clients wanting to produce square double-layer stainless steel insulated lunch boxes. https://www.zhanyict.com/en/ProductsDetail-VB-10347.htmlToday, I'd like to share the issues I've encountered during these consultations, as well as the real production challenges, so that everyone can gain a comprehensive understanding of manufacturing this product through my sharing.
If you find my insights helpful for developing similar products, don't forget to give me a like. If you'd like to learn more, please follow the "Dongdong Talks Cups" account—whenever new content is updated, the system will notify you right away. https://www.zhanyict.com/en/ProductsDetail-VB-10347.htmlSince there's a lot of material, and some parts need to be read multiple times for full understanding, I'll be sharing this in multiple installments.
Why are round vacuum-insulated mugs ubiquitous on the market, while square double-layer insulated lunch boxes are almost nowhere to be seen? https://www.zhanyict.com/en/ProductsDetail-VB-10347.htmlSome friends have asked multiple brands for a trustworthy square insulated lunch box, only to find that none of them produce it.
Do many people wonder why, when round insulated containers are available, no brand produces a square one made of stainless steel? Is it really that difficult to manufacture? In fact, https://www.zhanyict.com/en/ProductsDetail-VB-10347.htmlthose in the industry know perfectly well that the production logic, equipment compatibility, and mechanical structures of the two are completely different.
Today, I'm going to candidly discuss the production difficulties of square double-layer stainless steel insulated lunch boxes. At the same time, I'll clearly explain the only two self-insulation solutions currently used in the industry—vacuum extraction and filling the interlayer with insulating materials—and provide a realistic, https://www.zhanyict.com/en/ProductsDetail-VB-10347.htmlactionable feasibility assessment specifically for an extra-large inverted-trapezoid square lunch box (45×35×25cm).
4. Feasibility Assessment of the Vacuum Process for the Extra-Large Inverted-Trapezoid Square Lunch Box (45×35×25cm)
I'll give you the conclusion straight up: it can be prototyped in the lab, but it is completely impossible to mass-produce commercially and has no production value whatsoever.
The product specifications: inverted-trapezoid shape, with a larger top opening and smaller bottom, slight curvature on all four sides and corners, https://www.zhanyict.com/en/ProductsDetail-VB-10347.htmlouter wall thickness of 1.2mm, inner wall thickness of 1.0mm, and a 5mm interlayer gap. The parameters may seem reasonable on paper, but when combined with the dimensions, they become a fatal flaw.
First, the deformation issue is unsolvable. A 45cm ultra-large flat surface made of 1.2mm stainless steel sheet simply cannot withstand the negative-pressure compression of standard atmospheric pressure. https://www.zhanyict.com/en/ProductsDetail-VB-10347.htmlAfter vacuum extraction, large-area dents and corner collapses are inevitable—thickening the sheet metal can only mitigate the problem, not eliminate it.
Second, the sealing welding difficulty exceeds the limit. The total weld seam length is close to two meters, with multiple irregular curved transitions and corners. https://www.zhanyict.com/en/ProductsDetail-VB-10347.htmlThe risk of micro-leaks from segmented welding is extremely high, and it will not pass helium leak testing—leakage and failure are 100% certain down the line.
Third, the equipment is completely mismatched. Conventional vacuum furnaces and vacuum extraction equipment can only hold a few large workpieces at a time. To produce this, you would have to custom-build larger vacuum equipment. Moreover, due to the irregular shape of the product, https://www.zhanyict.com/en/ProductsDetail-VB-10347.htmlthe vacuum duration is difficult to set precisely; even with the same vacuum temperature and duration within the same batch, workpieces still show varying degrees of deformation.
Fourth, the yield rate for spraying and polishing is too low, and the cost of manual rework far exceeds the value of the product itself.
