Why Square Double-Wall Stainless Steel Lunch Boxes Are a Pain to Make (Part 6)
Por qué las loncheras cuadradas de acero inoxidable de doble pared son un dolor de cabeza para fabricar (Parte 6)
Stories in the cup, warmth in life—hello everyone, this is "Dong Dong's Cup Talk". Over the past year or so, I've received numerous inquiries from clients wanting to produce square double-layer stainless steel insulated lunch boxes. https://www.zhanyict.com/en/ProductsDetail-VB-10378.htmlToday, I'd like to share the issues I've encountered during these consultations, as well as the real production challenges, so that everyone can gain a comprehensive understanding of manufacturing this product through my sharing. If you find my insights helpful for developing similar products, don't forget to give me a like. If you'd like to learn more, please follow the "Dongdong Talks Cups" account—whenever new content is updated, the system will notify you right away. Since there's a lot of material, and some parts need to be read multiple times for full understanding, I'll be sharing this in multiple installments.

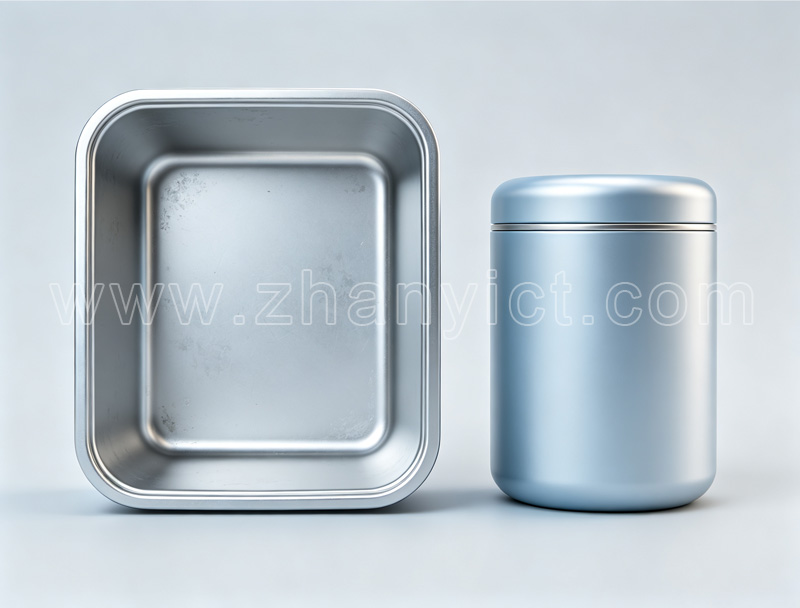

Why are round vacuum-insulated mugs ubiquitous on the market, while square double-layer insulated lunch boxes are almost nowhere to be seen? https://www.zhanyict.com/en/ProductsDetail-VB-10378.htmlSome friends have asked multiple brands for a trustworthy square insulated lunch box, only to find that none of them produce it.
Do many people wonder why, when round insulated containers are available, no brand produces a square one made of stainless steel? Is it really that difficult to manufacture? In fact, those in the industry know perfectly well that the production logic, https://www.zhanyict.com/en/ProductsDetail-VB-10378.htmlequipment compatibility, and mechanical structures of the two are completely different.
Today, I'm going to candidly discuss the production difficulties of square double-layer stainless steel insulated lunch boxes. At the same time, I'll clearly explain the only two self-insulation solutions currently used in the industry—vacuum extraction and filling the interlayer with insulating materials—and provide a realistic, https://www.zhanyict.com/en/ProductsDetail-VB-10378.htmlactionable feasibility assessment specifically for an extra-large inverted-trapezoid square lunch box (45×35×25cm).
3. Reasons for High Defect Rates in Spray Coating
In the industry, the visual quality inspection standard for insulated mugs is fairly lenient: at a viewing distance of 50 cm, a product passes if it has no more than three surface coating defects. Because mugs have small curved surfaces, https://www.zhanyict.com/en/ProductsDetail-VB-10378.htmldust doesn't easily accumulate during spraying, and defects are naturally fewer.
However, square lunch boxes are a completely different story—their large, flat surfaces are a "disaster zone" for spraying. With such large planar areas, the probability of electrostatic dust attraction increases dramatically, and issues like particles, specks, and pinholes multiply exponentially. https://www.zhanyict.com/en/ProductsDetail-VB-10378.htmlMoreover, on cylindrical curved surfaces, paint flows evenly by gravity, resulting in a smooth, uniform finish; on square vertical flat surfaces, the top tends to get a thinner coat while paint pools and sags at the bottom, leading to obvious color differences and orange-peel effects. Particularly at the curved corners, the electric field is disrupted, causing uneven coating thickness, which directly causes a sharp drop in yield and significantly raises production costs.
