Why Square Double-Wall Stainless Steel Insulated Lunch Boxes Are Difficult to Manufacture (Part 1)

Every cup holds a story, every life brims with warmth. Hello everyone, this is "Dong Dong's Cup Talk"

Over the past year or more, I’ve consulted countless clients who want to develop square double-wall stainless steel insulated lunch boxes. Today I’ll share all the practical challenges I’ve encountered during these consultations, as well as genuine manufacturing hurdles. I hope this sharing gives you a full picture of production for this product. If you find this content helpful for developing similar items, https://www.zhanyict.com/en/ProductsDetail-VB-10527.htmldon’t forget to hit the like button. To access more related articles, follow my account “Dong Dong Talking Cups”. The system will send you instant notifications as soon as new posts go live. This is quite a lengthy piece, and some sections require repeated reading for full comprehension, so I’ll split it into multiple installments for you.

Why are round vacuum insulated tumblers ubiquitous on the market, yet square double-wall insulated lunch boxes are barely seen anywhere? https://www.zhanyict.com/en/ProductsDetail-VB-10527.htmlMany consumers shopping for reliable branded square insulated lunch boxes have reached out to dozens of brands, only to find none manufacture them.

Many people may wonder: round insulated food containers already exist, so why won’t brands simply reshape stainless steel from round to square? https://www.zhanyict.com/en/ProductsDetail-VB-10527.htmlIs manufacturing really that difficult? Industry insiders all know the truth: these two products follow entirely different production logic, equipment matching standards and mechanical structural designs.

Today I’ll break down the genuine manufacturing difficulties of square double-wall stainless steel insulated lunch boxes in plain terms. I’ll also thoroughly explain the only two self-insulation solutions available in the industry today: vacuum evacuation and interlayer thermal insulation filling. https://www.zhanyict.com/en/ProductsDetail-VB-10527.htmlAdditionally, I’ll deliver a practical, actionable production feasibility assessment for extra-large trapezoidal square lunch boxes (45×35×25cm).

I. What Self-Insulation Methods Are Available for This Product?

Many double-wall insulated lunch boxes advertised by merchants on e-commerce platforms like Taobao are nothing but marketing gimmicks. https://www.zhanyict.com/en/ProductsDetail-VB-10527.htmlAt present, genuine double-wall lunch boxes that deliver long-lasting thermal insulation without auxiliary accessories are practically non-existent on the market.

To verify my judgment, I purchased dozens of square lunch boxes online that claimed to adopt double-wall vacuum insulation. As I expected, not a single one featured true vacuum insulation via evacuation—zero exceptions. But why is this the case?

Based on current industry technology and craftsmanship, there are only two proven methods to deliver thermal insulation for stainless steel tableware: vacuum evacuation of double-wall structures, https://www.zhanyict.com/en/ProductsDetail-VB-10527.htmland heat insulation via filling thermal insulation materials into the interlayer. I have yet to discover a third viable solution.

1. Vacuum Evacuation Insulation: The Most Mainstream, Effective and Durable Solution

This is the exact craftsmanship used in the insulated tumblers you use daily. The working principle is straightforward: heat transfers mainly through air convection, medium conduction and thermal radiation. https://www.zhanyict.com/en/ProductsDetail-VB-10527.htmlIf air remains trapped inside the stainless steel interlayer, heat will dissipate rapidly.

The vacuum process removes nearly all air from the interlayer. Without air as a heat transfer medium, heat cannot escape the container. Combined with a radiation shielding coating on the inner wall to trap residual heat, https://www.zhanyict.com/en/ProductsDetail-VB-10527.htmlthe thermal insulation performance becomes far superior.

I’ll share the factory’s actual production standards and technical parameters with you. Once you understand these, you’ll be able to judge product quality independently and avoid being misled by merchants.

Qualified food-grade vacuum stainless steel vessels must undergo high-temperature outgassing during production. The temperature is strictly controlled between 320°C and 450°C, with baking duration ranging from 90 to 160 minutes. https://www.zhanyict.com/en/ProductsDetail-VB-10527.htmlThis fully evaporates all moisture and oil contaminants adsorbed inside the stainless steel sheets. Cutting corners on this step will inevitably lead to slow air leakage over time.

During vacuum pumping, the residual pressure inside the interlayer of qualified finished products must be lower than 0.001 Pascal. The lower this figure, the higher the vacuum degree and the better the insulation effect. https://www.zhanyict.com/en/ProductsDetail-VB-10527.htmlIf residual pressure exceeds 0.05 Pa, the product is essentially a semi-vacuum defective unit with drastically reduced heat retention. Once residual pressure rises above 1 Pa, its insulation performance is identical to an ordinary hollow double-wall shell with no vacuum treatment at all.

Features of Qualified Vacuum Insulated Products

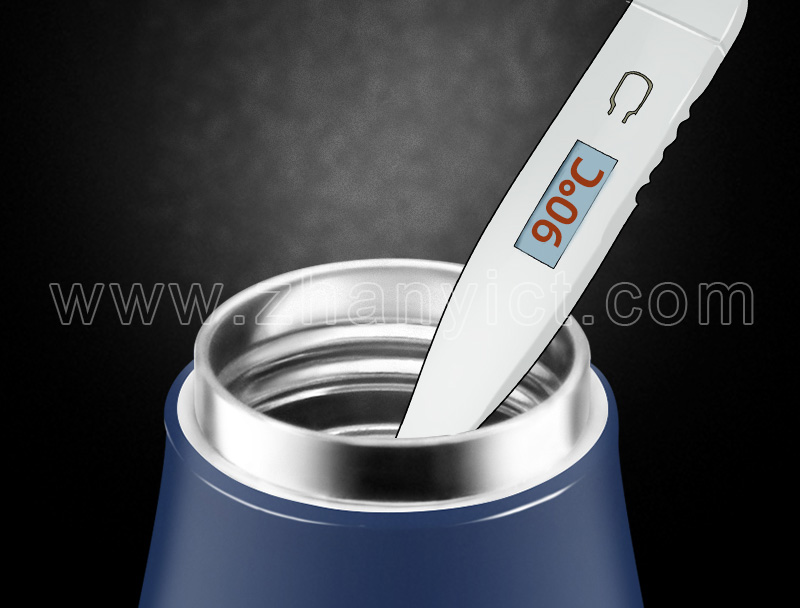

When tapping the outer wall by hand, the sound is deep and solid, without a thin hollow ringing noise. When left empty at room temperature for a full year, its thermal insulation performance barely deteriorates. https://www.zhanyict.com/en/ProductsDetail-VB-10527.htmlWhen filled with boiling water, the temperature drops only slightly after six hours, delivering exceptionally stable overall performance.

Features of Unqualified Defective Vacuum Products

Case 1: Insufficient pumping time or incomplete outgassing. The container produces a crisp hollow sound when tapped. Though visually double-walled, the vacuum is incomplete, and the contents turn cold after just two to three hours of insulation. Case 2: Pseudo soldering (cold solder joints). https://www.zhanyict.com/en/ProductsDetail-VB-10527.htmlThe product passes inspection upon factory shipment, yet microcracks form in the faulty weld after one to two months of use due to multiple environmental factors. This triggers an abrupt collapse in thermal insulation performance. Such defects are completely invisible to the naked eye and can only be detected via factory helium leak testing equipment.

The lowest-quality counterfeit products skip vacuum pumping entirely and only seal the double-wall shell, https://www.zhanyict.com/en/ProductsDetail-VB-10527.htmlmisleading consumers with a hollow two-layer structure that delivers zero thermal insulation.
