What is the difference between dual heating rings and a single heating ring in terms of heating efficiency and uniformity?Part 1

Every cup holds a story, and life has warmth. Hello everyone, this is "Dong Dong's Cup Talk". In my years in the industry, I recall that portable heated water cups first appeared around 2016. After several years of market cultivation, heated water cups began to enter a rapid development stage in 2020, and the market exploded in 2022. Although market enthusiasm for heated water cups has cooled somewhat in the past two years, many brands are still developing such products. https://www.zhanyict.com/en/ProductsDetail-VB-10439.htmlToday, I have invited Engineer Li from our factory, who has been in charge of heated cup development since 2016, to share with us the difference between dual heating rings and a single heating ring in heating efficiency and uniformity.

As an engineer with nearly 10 years of deep experience in heated cup design, I can tell you clearly: the core difference between dual heating rings and a single heating ring is essentially a trade-off between "heat distribution design" in terms of efficiency and uniformity. https://www.zhanyict.com/en/ProductsDetail-VB-10439.htmlThe actual gap in thermal efficiency values between the two is not large, but there is a world of difference in real heating experience, water temperature consistency, and long-term reliability.

Based on my dry-heating tests, temperature rise curve records, and cost structure analysis in mass production, https://www.zhanyict.com/en/ProductsDetail-VB-10439.htmlI break down the differences between the two into the following three core dimensions, supplemented by selection advice from an engineer’s perspective:

1. Heating Uniformity: The Decisive Difference in Core Experience

This is the most intuitive difference between the two and the main reason why high-end custom brands tend to choose dual rings.

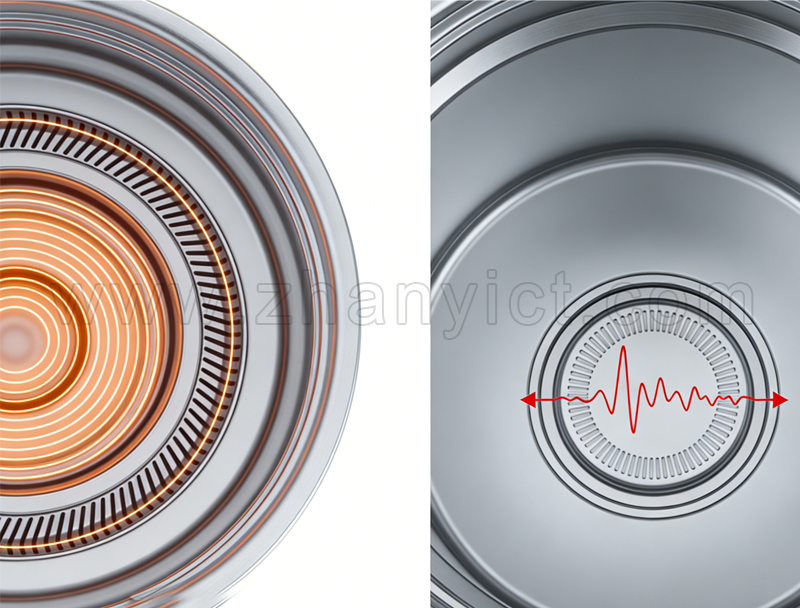

Single Heating Ring: Boiling at the center, warm at the edges

Working principle: The heat source is concentrated at the exact center of the cup bottom, with heat radiating outward from a "point" core.

Actual performance: In the conventional capacity range of 300–400ml, a clear "temperature gradient" occurs. https://www.zhanyict.com/en/ProductsDetail-VB-10439.htmlDuring boiling tests, you will see violent bubbling at the center of the cup bottom, while the water near the cup wall may only be 60–70°C.

User pain points: When pouring milk, coffee, or other mixed liquids, the center burns while the edges remain cold; when making tea, uneven upper and lower water temperatures affect the taste.

Dual Heating Rings: Full-area heating, synchronized temperature rise

Working principle: Adopts a concentric "inner ring + outer ring" design. The inner ring provides core power output, while the outer ring compensates for heat in the cup wall area.

Actual performance: https://www.zhanyict.com/en/ProductsDetail-VB-10439.htmlHeat covers more than 90% of the effective area at the cup bottom. The temperature rise curve is extremely smooth, and the temperature difference across the entire cup can be controlled within ±3°C.

Advantage scenarios: For large-capacity cups (over 450ml) or high-end products requiring precise temperature control (such as 45°C for milk preparation, https://www.zhanyict.com/en/ProductsDetail-VB-10439.html85°C for tea brewing), dual rings are an essential configuration.
